5D TECH 15kWh All-in-One Stackable ESS with LiFePO4 Battery | Solar Energy Storage System

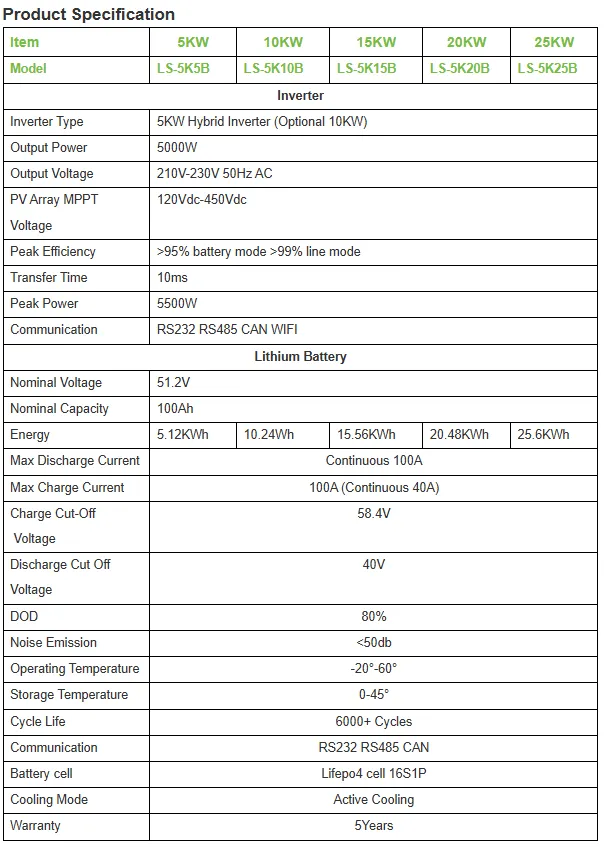

Key specifications
The 15 kWh stacked energy storage unit integrates three layers of 5 kWh lithium batteries with a 5 kW hybrid inverter. Delivering up to 5 kW output and 15 kWh of storage, it features a mobile wheeled design that makes relocation and installation effortless.
Product Description

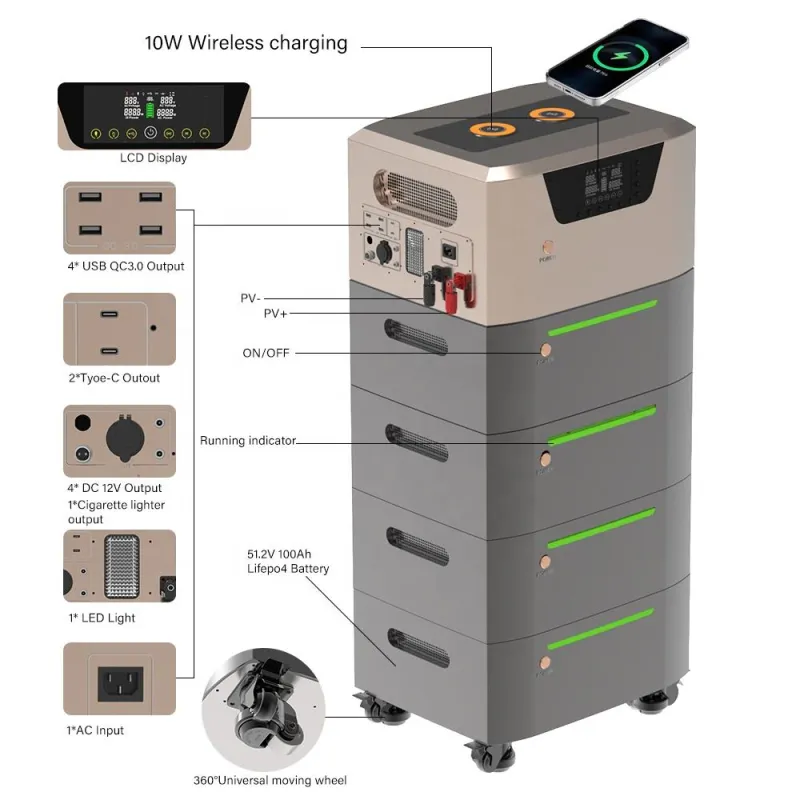

The 5D TECH LS Series is an all-in-one stackable ESS designed for home energy storage. Its flexible modular design makes installation and operation simple and convenient.
This system provides an economical path to energy self-sufficiency by storing excess clean energy generated during the day and powering household appliances and equipment whenever needed.

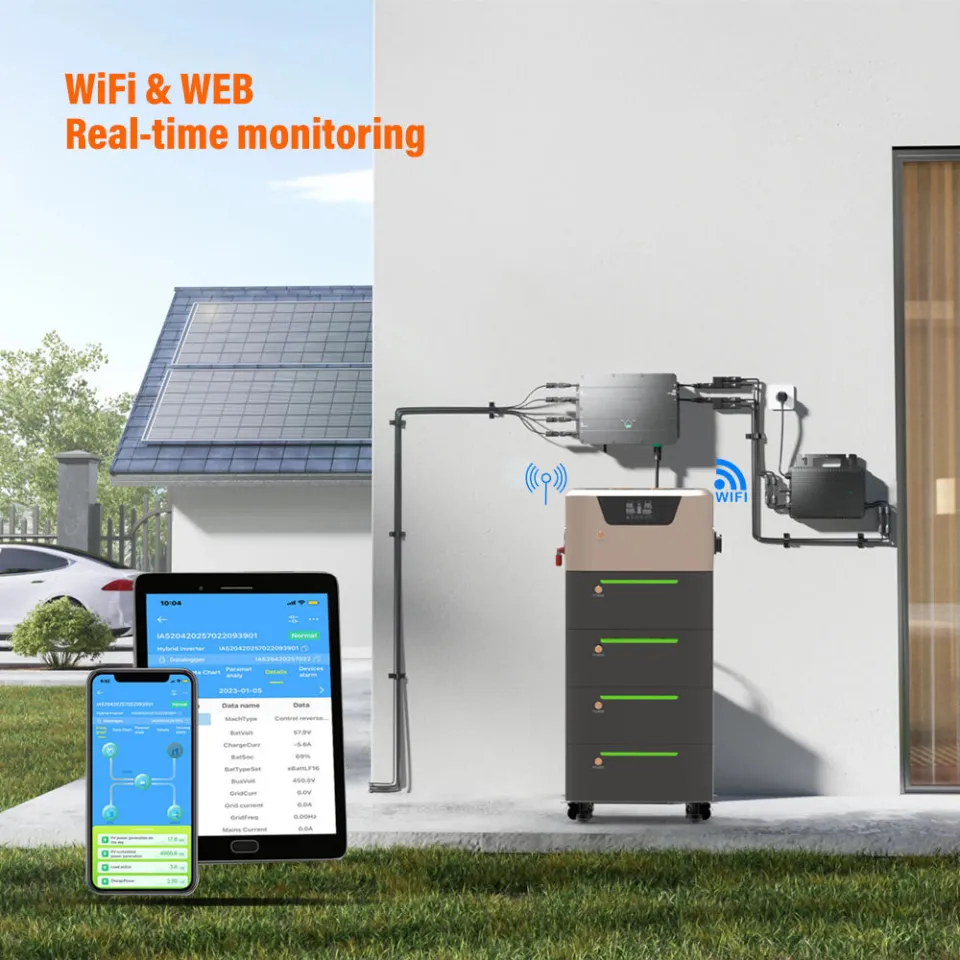

Equipped with built-in Wi-Fi, users can monitor and control system performance anytime, anywhere through a mobile app. The compact floor-standing design further enhances installation flexibility.

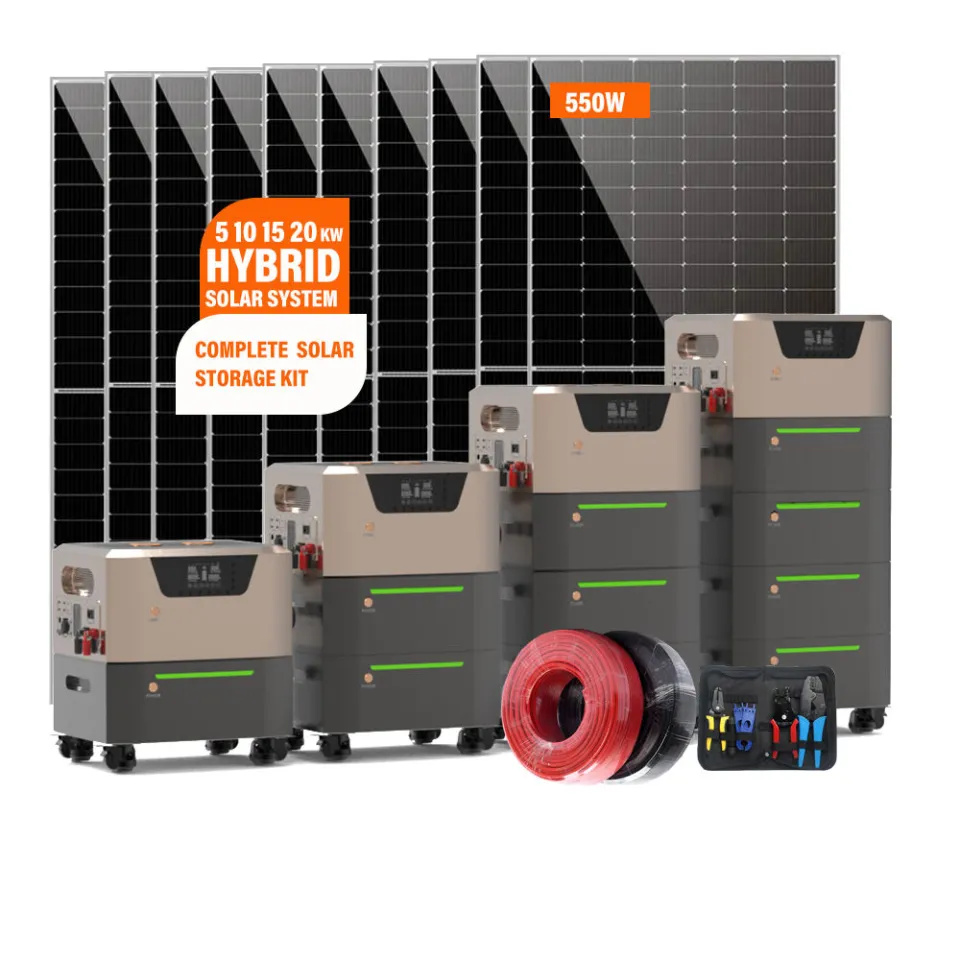

Modular stackable design – expand capacity easily by adding battery modules

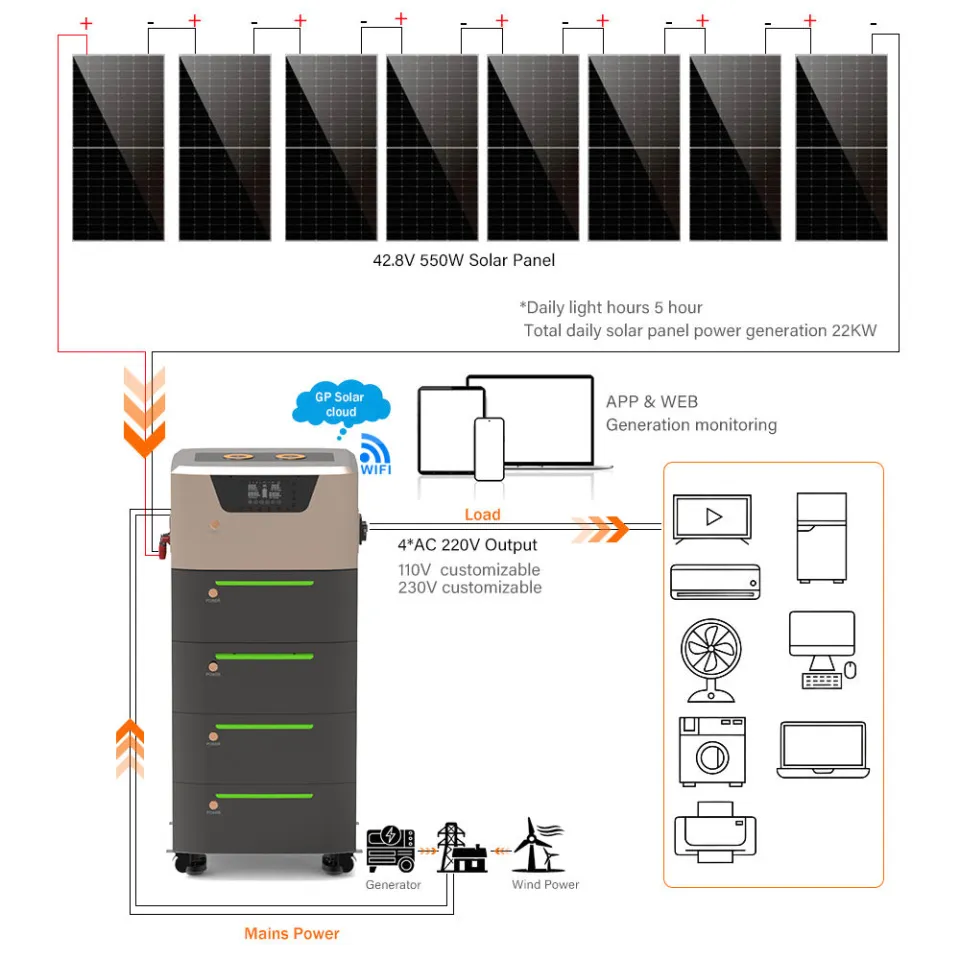

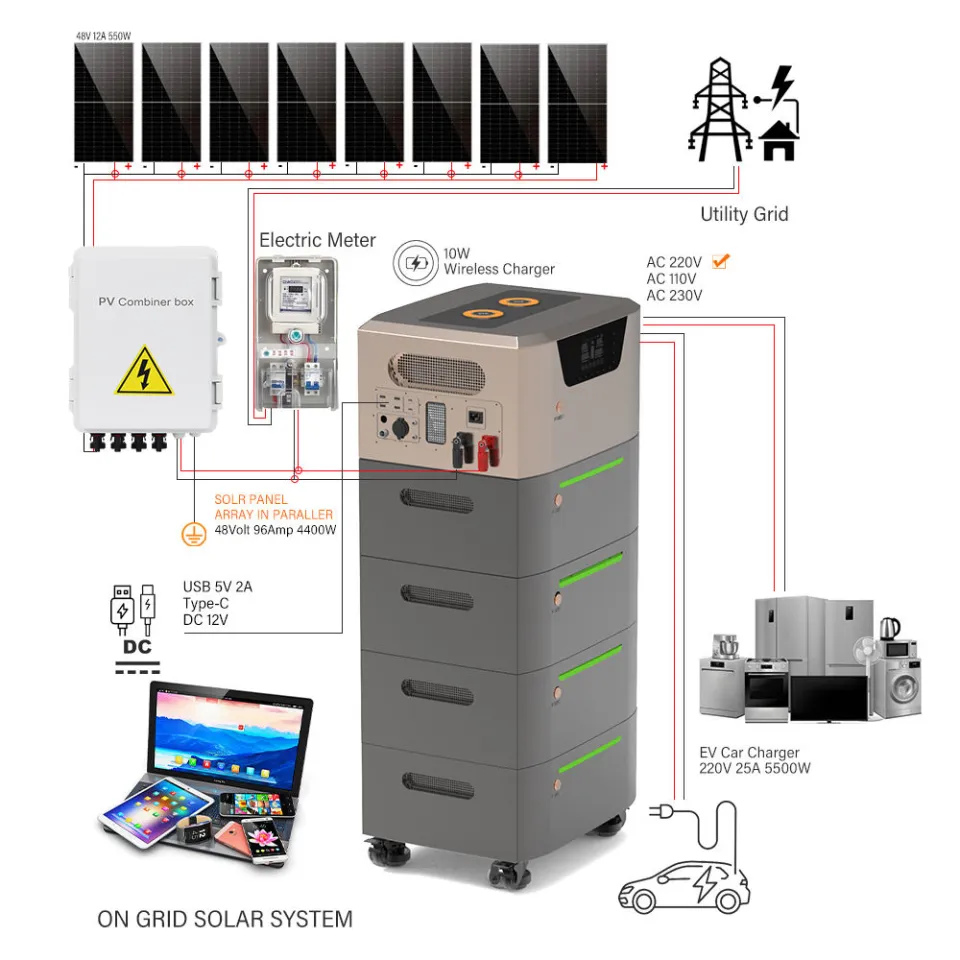

Integrated 5 kW hybrid inverter + MPPT solar charge controller
High-safety LiFePO4 cells (16S1P configuration)
Selectable power source priority (Solar / Battery / Grid)
Wide AC input voltage range (110 V / 220 V / 230 V / 240 V)
Comprehensive protection: over-discharge, overload, over-temperature, short-circuit
Multiple communication options: RS232, RS485, CAN, WiFi
Active cooling + low noise (<50 dB)
6000+ cycle life
5-year warranty
