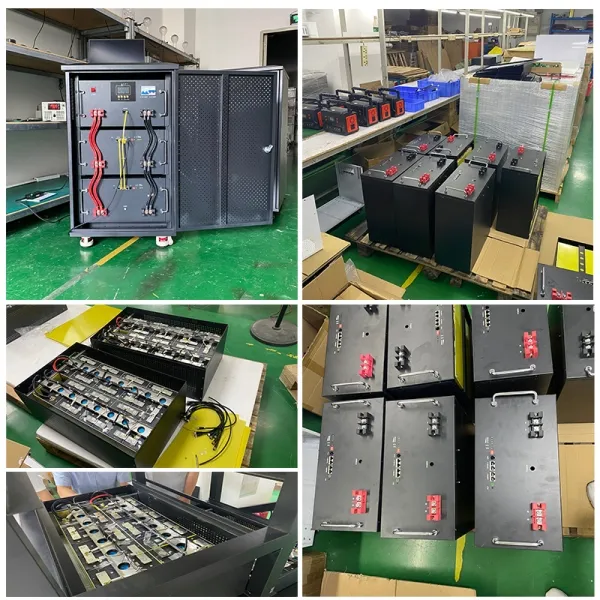

5D TECH 10.24kWh 51.2V 200Ah LiFePO4 Rack Mounted Battery for Solar Energy Storage Systems
Key specifications
1. Long lifespan time with 6000 cycles and 5 years warranty, 25 years life design
2. 4U rack-mount chassis design is easy for parallel expansion and maintenance
3. Smart BMS system to optimize the performance
4.Communication:RS232/RS485/CAN/(Wifi/Bluetooth)optional, Compatible with different brand of solar inverter and chargers
5. All around protection: such as SOC/SOH/ Anti-theft function etc
6. High discharge rate currents, suitable for on-grid or off-grid solar system and other loads
7. Maximum of 16 battery packs can be connected in parallel
8. With front display to know effectively the status of the batteries
Product Description
Rack Mount Energy Storage Battery 51.2V 200Ah Lifepo4 Battery Feature
1. Long lifespan time with 6000 cycles and 5 years warranty, 25 years life design
2. 4U rack-mount chassis design is easy for parallel expansion and maintenance
3. Smart BMS system to optimize the performance
4.Communication:RS232/RS485/CAN/(Wifi/Bluetooth)optional, Compatible with different brand of solar inverter and chargers
5. All around protection: such as SOC/SOH/ Anti-theft function etc
6. High discharge rate currents, suitable for on-grid or off-grid solar system and other loads
7. Maximum of 16 battery packs can be connected in parallel
8. With front display to know effectively the status of the batteries
| Item | 5KW | 10KW | 15KW | ||
| Model | RK5100 | RK5200 | RK5300 | ||
| Battery type | LiFePo4 Battery | ||||
| Nominal Voltage | 51.2V | ||||
| Nominal Capacity | 100Ah | 200Ah | 304Ah | ||
| Max.discharge current(A) | Continuous 100A | Continuous 100A | Continuous 100A | ||
| Max charge current | 100A | 100A | 100A | ||
| Cycle Life(DOD 80%) | ＞6000 Cycles | ＞6000 Cycles | ＞6000 Cycles | ||
| BMS | 16S LFP 100A | ||||
| Working temperature | -20℃～+60℃ | ||||
| Safety standard | CE IEC62619 IEC62133 UN38.3 | ||||
| Dimension(cm) | 56.6*43*17 | 62*52.4*28 | 75*52.4*29.7 | ||
| Weights | 45KG | 85KG | 85KG | ||
